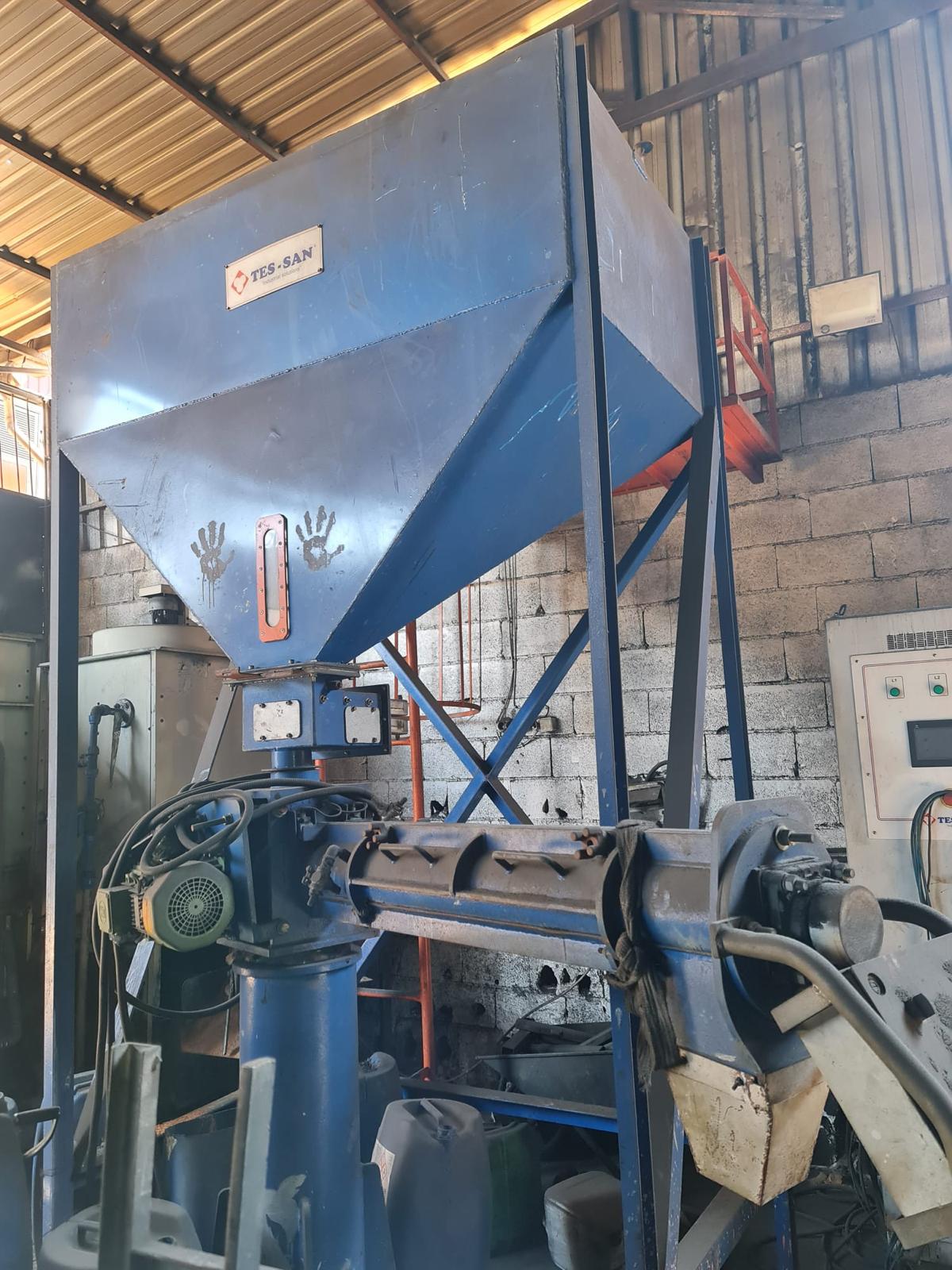

2023 TES-SAN TMS Alphaset-CO2 resin sand mixer, built in Konya, Turkey. Used to prepare moulding and core sand with Alphaset (alkaline phenolic) and CO2 binders.
Single-arm continuous screw mixer: sand is fed from the hopper into the screw trough while resin and hardener are dosed for a homogeneous mix. Resin and hardener pumps are inverter-controlled.

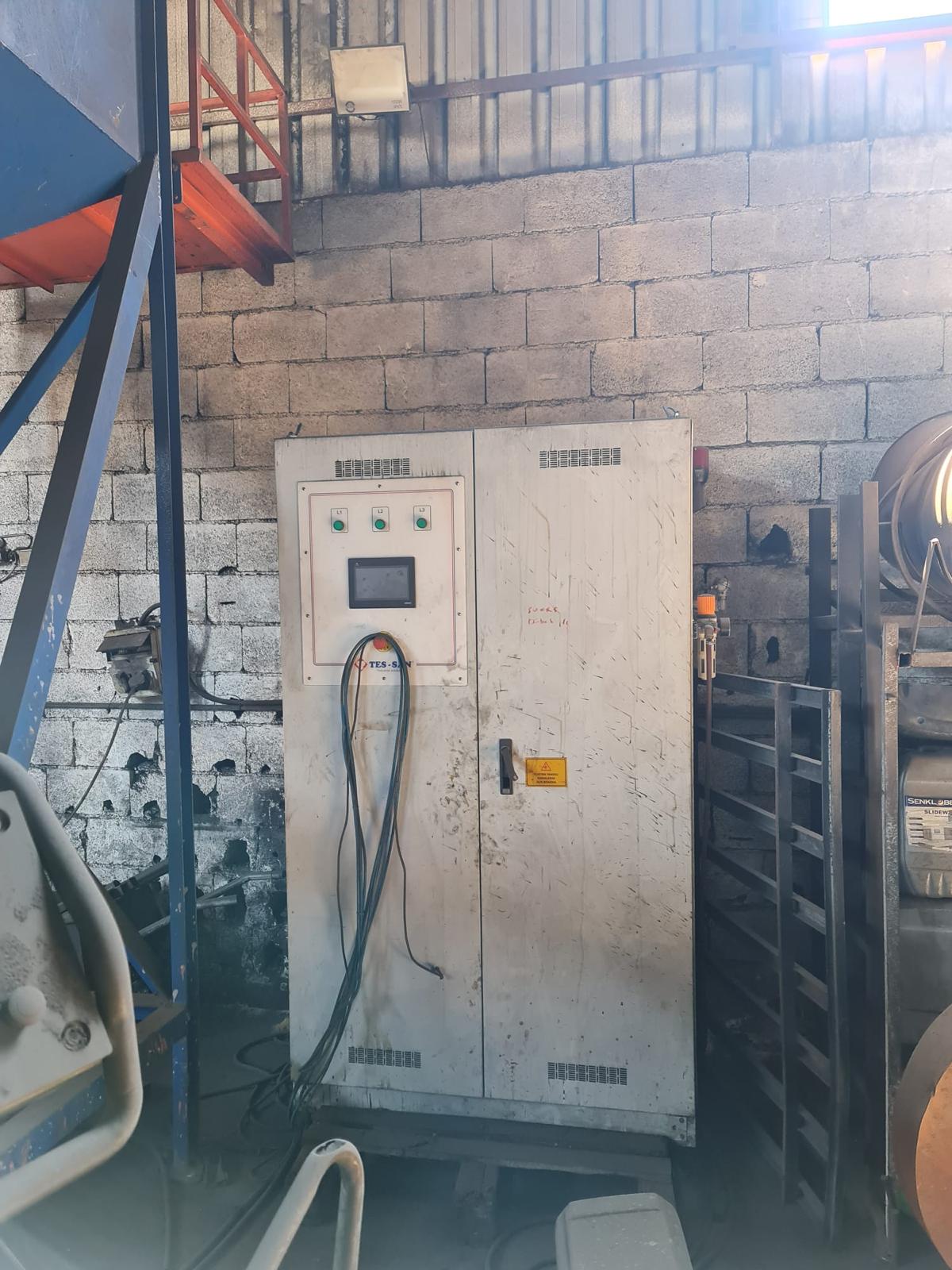

Supplied with a sand hopper with sight glass, steel support structure and an electrical control cabinet with touchscreen HMI.
ZENES can handle dismantling, transport, installation and commissioning at the new plant.
Request price and scope of supply using reference ZEN-1999.
Technical information
| Make | TES-SAN (Konya, Turkey) |
|---|---|
| Model | TMS Alphaset-CO2 resin mixer |
| Year | 2023 |
| Binder system | Alphaset (alkaline phenolic) and CO2 |
| Type | Single-arm continuous screw mixer |
| Dosing | Inverter-controlled resin and hardener pumps |
| Control | Electrical cabinet with touchscreen HMI |
| Included | Sand hopper with sight glass, steel support structure |
Photos
